Vacuum brazing of PDC bearing matrix and diamond composite sheet

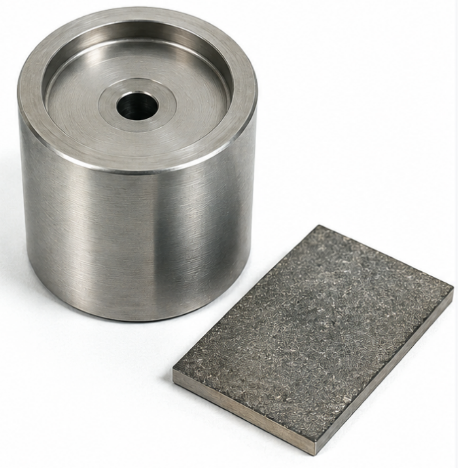

Vacuum brazing of PDC (Polycrystalline Diamond Compact) bearing matrix and diamond composite sheets is an advanced joining technology used in the production of high-performance wear-resistant and drilling components. This process creates a strong metallurgical bond between the PDC bearing matrix and the diamond composite sheet, ensuring excellent durability and reliability under severe operating conditions.

During vacuum brazing, the components are precisely assembled with a suitable brazing alloy and placed inside a high-vacuum furnace. The vacuum environment prevents oxidation and contamination, allowing the filler metal to flow uniformly and form a clean, high-strength bond. This results in superior joint integrity, dimensional accuracy, and consistent product quality.

The combination of a tough bearing matrix and an ultra-hard diamond composite sheet provides exceptional wear resistance, impact strength, and thermal stability. These characteristics make vacuum-brazed PDC assemblies ideal for demanding applications such as oil and gas drilling, mining equipment, geological exploration tools, and other heavy-duty industrial systems.

Vacuum brazing also minimizes distortion and residual stress, extending the service life of the component while maintaining reliable performance in harsh working environments. As a result, it has become a preferred manufacturing method for advanced PDC and diamond composite products requiring maximum strength, precision, and wear resistance.
