Vacuum Brazing Copper Between Two Diamond Plates for High-Performance Heat Dissipation

As electronic devices become more compact and power densities continue to increase, efficient thermal management has become a critical factor in maintaining system reliability and performance. One advanced solution is vacuum brazing copper between two diamond plates, creating a highly efficient heat dissipation structure that combines the outstanding thermal conductivity of diamond with the excellent heat transfer capabilities of copper.

This innovative joining technology is widely used in industries where rapid heat removal is essential, including semiconductor manufacturing, laser technology, aerospace, high-power electronics, and advanced communication systems.

Why Combine Copper and Diamond?

Copper is one of the most widely used thermal management materials because of its excellent thermal conductivity, electrical conductivity, and machinability. Diamond, however, offers even higher thermal conductivity while providing exceptional hardness, wear resistance, and dimensional stability.

By vacuum brazing copper between two diamond plates, manufacturers create a composite structure that efficiently transfers heat away from critical components while maintaining excellent mechanical stability.

The combination provides an ideal solution for applications that demand maximum cooling performance without compromising reliability or structural integrity.

Challenges of Joining Copper and Diamond

Joining copper with diamond is a complex process due to the significant differences in their physical and thermal properties. Conventional welding methods often struggle to produce reliable bonds because oxidation, contamination, and uneven heating can weaken the interface.

Vacuum brazing overcomes these challenges by providing a clean, oxygen-free environment that allows the brazing filler alloy to form a strong metallurgical bond while minimizing thermal stress. Precise temperature control also helps maintain the integrity of both materials throughout the heating and cooling cycle.

This process results in durable assemblies capable of operating under demanding thermal conditions.

Benefits of Vacuum Brazing for Diamond Heat Dissipation Components

Vacuum brazing offers significant advantages for manufacturing high-performance thermal management products.

The process delivers:

• Strong and reliable bonding between copper and diamond
• Oxidation-free joints with excellent cleanliness
• Superior thermal conductivity for efficient heat transfer
• High dimensional accuracy and process repeatability
• Stable performance under continuous thermal cycling

These advantages make vacuum brazing one of the most reliable joining methods for advanced heat dissipation components.

Applications of Copper and Diamond Vacuum-Brazed Assemblies

Copper-diamond composite structures are increasingly used in industries where efficient thermal management directly affects equipment performance and service life.

Typical applications include:

• Semiconductor packaging and power modules
• High-power laser systems
• Optical communication equipment
• Aerospace electronic systems
• Electric vehicle power electronics
• RF and microwave devices
• High-performance computing and AI servers

As electronic systems continue to generate more heat in smaller spaces, advanced heat dissipation technologies like vacuum-brazed copper and diamond assemblies are becoming increasingly important.

Normantherm Vacuum Brazing Solutions

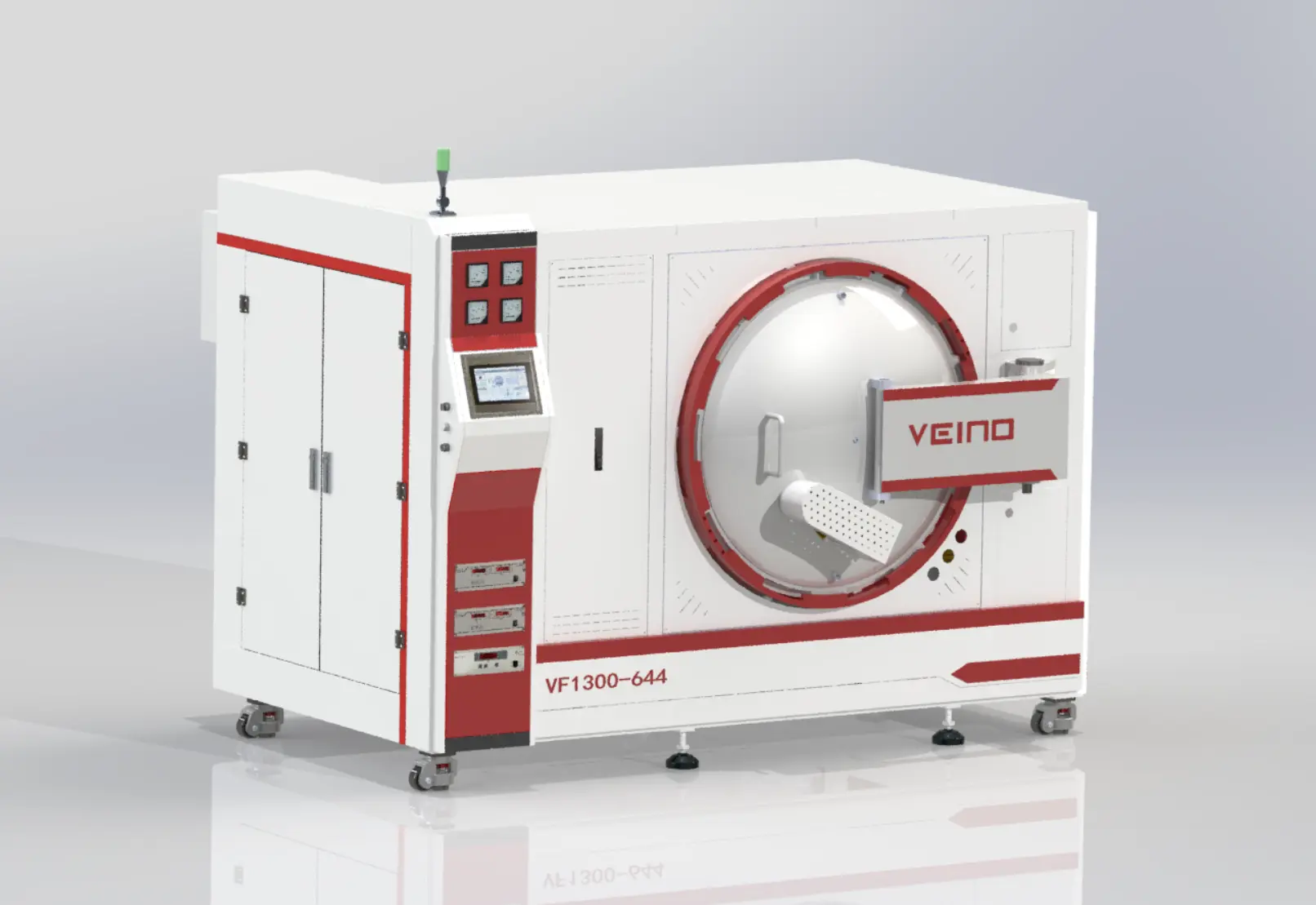

At Normantherm, we develop advanced vacuum brazing furnaces designed for precision joining of high-performance materials, including copper, diamond, ceramics, stainless steel, titanium alloys, and tungsten carbide.

Our vacuum furnace technology provides stable vacuum conditions, precise temperature control, and excellent heating uniformity to ensure consistent brazing quality for demanding thermal management applications.

Whether manufacturing prototype components or large-scale production assemblies, Normantherm helps customers achieve reliable brazing results and superior product performance.

Conclusion

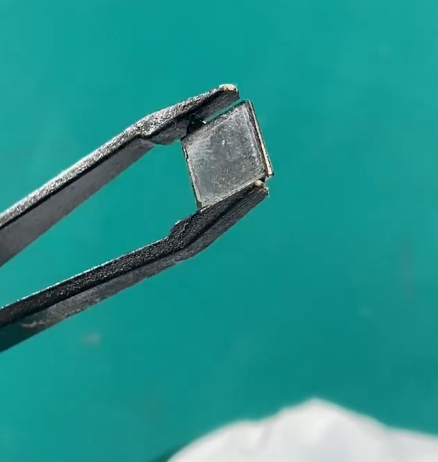

Vacuum brazing copper between two diamond plates creates advanced heat dissipation components capable of meeting the growing thermal demands of modern electronics and high-performance industrial equipment. By combining the exceptional thermal conductivity of diamond with the efficient heat transfer characteristics of copper, manufacturers can produce durable, high-reliability cooling solutions for critical applications.

With advanced vacuum furnace technology and extensive expertise in precision brazing, Normantherm continues to provide innovative thermal processing solutions that support the next generation of semiconductor, aerospace, and high-power electronic manufacturing.
