Vacuum Brazed Tungsten Steel and High-Speed Steel

High-performance cutting and tooling applications often require a combination of materials rather than relying on a single material throughout the component. Tungsten steel and high-speed steel (HSS) provide complementary properties that make them an effective combination for precision tools and wear-resistant industrial components.

Tungsten steel provides exceptional hardness and wear resistance, while high-speed steel offers excellent toughness, strength, and resistance to mechanical impact. Vacuum brazing provides a controlled method for joining these dissimilar materials and producing reliable finished products for demanding manufacturing environments.

Why Combine Tungsten Steel and High-Speed Steel?

Tungsten steel, commonly referring to cemented carbide, is widely used where extreme hardness and resistance to abrasion are required. It can maintain excellent cutting and wear performance under demanding operating conditions.

High-speed steel is valued for its toughness, strength, hardness, and ability to maintain cutting performance at elevated temperatures. It is commonly used for drills, milling cutters, blades, taps, dies, and other machining tools.

Combining these materials allows manufacturers to use tungsten steel at the working or wear-critical section while using high-speed steel as the supporting body. This can provide an effective balance between wear resistance, cutting performance, toughness, and structural reliability.

Challenges of Joining Tungsten Steel and High-Speed Steel

Tungsten steel and high-speed steel have different thermal expansion characteristics and metallurgical properties. During heating and cooling, these differences can generate stress at the joint.

Conventional welding can also introduce excessive localized heat, oxidation, distortion, and potential damage to the carbide component. For precision tooling, even small amounts of deformation can affect cutting accuracy and service life.

Vacuum brazing provides a more controlled alternative by allowing the two materials to be joined at a carefully controlled temperature without melting the base materials.

Vacuum Brazing Process for Tungsten Steel and HSS

During vacuum brazing, the tungsten steel and high-speed steel components are accurately positioned and prepared before being loaded into the vacuum furnace.

The furnace removes atmospheric gases and provides a clean processing environment. As the assembly reaches the specified brazing temperature, the filler metal melts and flows into the joint interface through capillary action.

Precise control of the heating rate, brazing temperature, holding time, and cooling cycle helps achieve uniform filler-metal flow and minimize thermal stress. The resulting joint can provide reliable mechanical support while preserving the performance characteristics of both materials.

Advantages of Vacuum-Brazed Tungsten Steel and High-Speed Steel

Vacuum brazing offers several important advantages when manufacturing tungsten steel and HSS assemblies:

• Strong and consistent bonding between dissimilar materials
• Excellent wear resistance at the tungsten steel working surface
• High toughness and structural support from high-speed steel
• Reduced oxidation and surface contamination
• Minimized thermal distortion and residual stress
• High repeatability for precision production

These characteristics make vacuum-brazed assemblies suitable for tools that operate under continuous cutting, forming, or abrasive conditions.

Applications of Tungsten Steel and High-Speed Steel Brazed Products

Vacuum-brazed tungsten steel and high-speed steel products can be used in a wide range of precision manufacturing applications.

Common applications include cutting tools, milling tools, drilling tools, turning tools, industrial blades, forming tools, wear-resistant components, machining inserts, and specialized tooling. The material combination can be customized according to the required hardness, cutting performance, impact resistance, operating temperature, and service life.

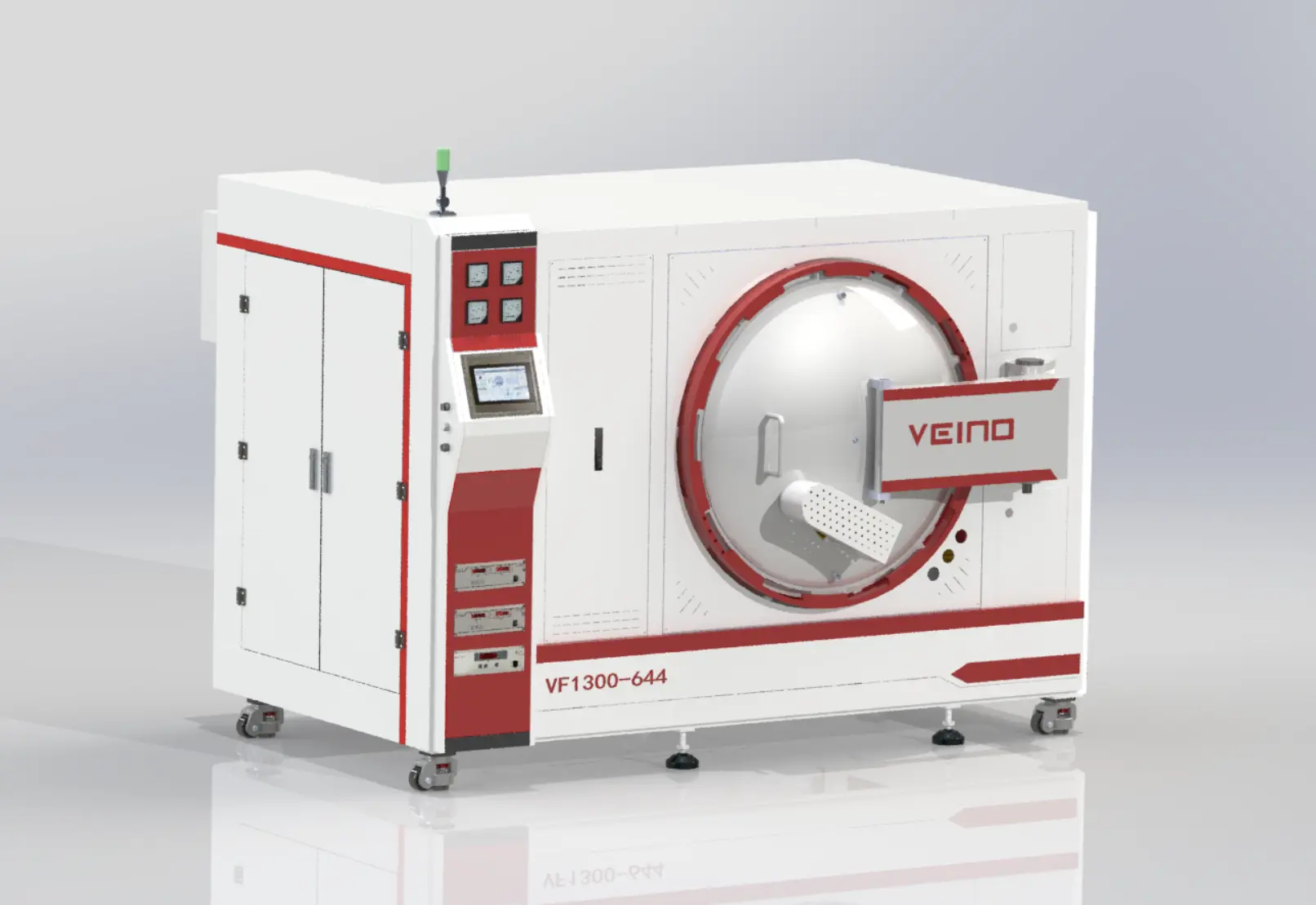

Normantherm Vacuum Brazing Furnace Solutions

At Normantherm, we manufacture advanced vacuum brazing furnaces for joining tungsten steel, high-speed steel, tool steels, stainless steel, copper alloys, ceramics, titanium alloys, and other engineering materials.

Our vacuum furnaces provide high-vacuum processing, precise temperature control, and excellent temperature uniformity. These capabilities are essential for producing reliable brazed joints between dissimilar materials while minimizing oxidation, distortion, and process variation.

For tooling manufacturers, stable furnace performance can help improve batch-to-batch consistency and support reliable production of high-performance brazed components.

Conclusion

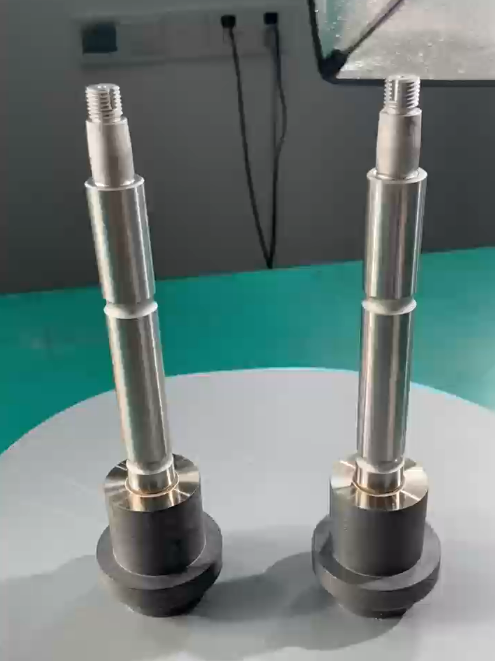

Vacuum brazed finished products of tungsten steel and high-speed steel combine the exceptional hardness and wear resistance of tungsten steel with the toughness and structural strength of high-speed steel. This makes the material combination highly suitable for cutting tools, machining components, and other demanding industrial tooling applications.

With controlled vacuum brazing, manufacturers can achieve clean, reliable joints while minimizing thermal stress and distortion. Normantherm's advanced vacuum brazing furnace technology provides the temperature uniformity, vacuum environment, and process control required for consistent production of high-performance tungsten steel and HSS components.
