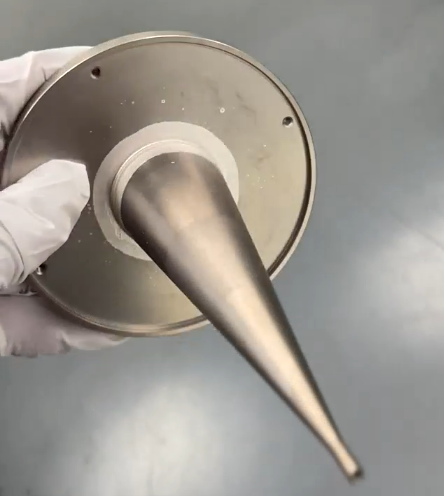

Stainless Steel Ion Source Sampling Cone Welding for Analytical Instruments

Modern analytical instruments require highly precise components capable of operating under demanding conditions. One such critical component is the ion source sampling cone, which plays a vital role in transferring ions from atmospheric pressure into the vacuum environment of mass spectrometry systems.

To ensure performance, dimensional accuracy, and long-term reliability, manufacturers increasingly rely on precision vacuum welding technologies for the production of stainless steel ion source sampling cones.

What Is an Ion Source Sampling Cone?

An ion source sampling cone is a precision-engineered component commonly used in:

• ICP-MS (Inductively Coupled Plasma Mass Spectrometry)
• Mass spectrometry systems
• Scientific analytical instruments
• Environmental testing equipment
• Pharmaceutical analysis systems

The sampling cone serves as the interface between atmospheric conditions and the instrument's vacuum chamber, allowing ions to enter the analytical system while maintaining vacuum integrity.

Because of its critical function, manufacturing quality directly impacts instrument performance.

Why Stainless Steel Is Used for Sampling Cones

Stainless Steel is widely selected for sampling cone applications because of its excellent combination of mechanical and chemical properties.

Key advantages include:

• Excellent corrosion resistance
• High-temperature stability
• Superior mechanical strength
• Precision machinability
• Long service life

These characteristics make stainless steel suitable for analytical and scientific equipment operating in demanding environments.

Challenges in Manufacturing Ion Source Components

Sampling cones require extremely high precision due to their role in ion transmission and vacuum system performance.

Manufacturing challenges include:

• Maintaining dimensional accuracy
• Achieving leak-free joints
• Preventing contamination
• Ensuring smooth internal surfaces
• Maintaining structural stability under thermal cycling

Even minor defects can negatively affect instrument sensitivity and analytical accuracy.

Benefits of Vacuum Welding Technology

Vacuum welding provides a highly controlled environment that is ideal for manufacturing precision analytical components.

• Oxidation-Free Processing

The vacuum environment prevents oxidation and contamination during welding.

• Superior Joint Quality

Strong metallurgical bonding ensures reliable long-term performance.

• High Precision

Controlled thermal processing minimizes distortion and preserves dimensional accuracy.

• Improved Vacuum Integrity

High-quality welded joints help maintain stable vacuum conditions within analytical instruments.

These advantages are particularly important for scientific and laboratory applications.

Applications of Stainless Steel Sampling Cones

Vacuum-welded sampling cones are widely used in:

• Mass spectrometry systems
• Laboratory testing equipment
• Pharmaceutical research instruments
• Environmental monitoring systems
• Materials analysis laboratories

As analytical technology advances, demand for high-precision welded components continues to grow.

Normantherm Vacuum Welding Solutions

At Normantherm, advanced vacuum furnace and welding technologies support the production of precision stainless steel components for scientific and industrial applications.

Our capabilities include:

• High-vacuum processing environments
• Precise temperature control
• Reliable welding of complex stainless steel assemblies
• Consistent production quality and repeatability

These solutions help manufacturers achieve the quality standards required for advanced analytical equipment.

Conclusion

Stainless steel ion source sampling cones are critical components in modern analytical instruments, requiring exceptional precision, vacuum integrity, and durability. Through advanced vacuum welding technology, manufacturers can achieve reliable, contamination-free joints and consistent product quality.

With advanced thermal processing expertise and precision manufacturing solutions, Normantherm supports the production of high-performance components for scientific, laboratory, and industrial applications.
