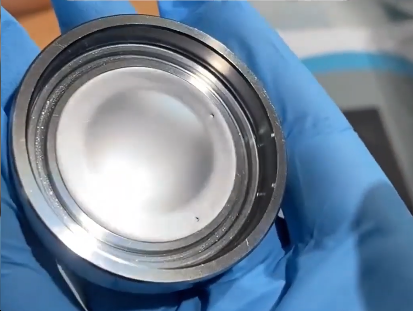

Stainless Steel & 3J21 Elastic Alloy Diaphragms Brazing

Diaphragms are the heart of many precision instruments. They must flex reliably, seal tightly and resist corrosion over years of service. Stainless steel and 3J21 elastic alloy together create an excellent material pairing. Precision vacuum brazing joins them into a single high-performance assembly.
3J21 alloy is valued for its exceptional elasticity and fatigue resistance. It returns to shape consistently after millions of deflections. Stainless steel provides structural strength and corrosion resistance. Brazing them creates a diaphragm that performs without compromise.
The challenge lies in joining these materials without degrading their properties. Our vacuum brazing process operates in a clean oxygen-free environment that eliminates oxidation and contamination. The filler metal flows evenly creating high-strength metallurgical bonds between the two alloys.
The result is excellent elasticity retention. The 3J21 side flexes freely while the stainless steel side maintains dimensional accuracy and structural integrity. Leak-tight joints ensure reliable sealing in pressure and vacuum applications. Corrosion resistance is preserved across the entire assembly.
This process delivers exceptional dimensional stability and long-term reliability. It is ideal for pressure sensors, aerospace components, medical devices, precision instruments and other high-performance industrial applications. When your diaphragm assembly must be durable precise and reliable vacuum brazing of stainless steel to 3J21 elastic alloy delivers.
